Security Rated Steel Door - PAS 24

Home / Our Doors / Steel Security Doors / Security Rated Steel Door - PAS 24
;
Securidor Blue

Securidor PAS 24 steel doors offer enhanced security performance for internal and external use to enable entry and exit.

Each is built to order, individually constructed with a choice of high security Mico hardware, offering greater protection to your premises.

Available with multiple upgrades including acoustic rating up to 39dB, U-value as low as 1.5Wm2K and high security Mico Tindall hardware.

  • Single or Multi-Point Locking
  • Rockwool or Honeycomb Core
  • High Security Mico Tindall Hardware Available
Unique Range Features

Fast quotes
Steel door experts
U-Value as low as 1.5 W/m2K

Download Tech Specs
Iso

Product Features

Height Icon
Height

Single - up to 2.55m
Double - up to 2.55m

Width Icon
Width

Single - up to 1.36m
Double - up to 2.5m

* For panic exit doors, the maximum width is up to 2610mm

I5
Leaf Thickness

44mm deep leaf skin

Lock icon indicating security
Certification

PAS 24:2016

I10
THERMAL TRANSMITTANCE - U-VALUE

Available with an insulated core as low as 1.5 U-value.

Strongdor Icons Acoustic
ACOUSTIC RATING

Up to 39dB rating.

I6
FIRE RESISTANCE

Available with fire rating up to E120.

Strongdor Icons Security
Security Rating

Available with Secured By Design certification.

NBS Specification

Further information

Features
Drawings
Videos
Downloads

Frames
Manufactured from lightweight, high tensile 1.5 mm thick ‘Rustec’ steel.
Adjust 2-Fit side expander systmen that offers up to 12mm expansion to the structural opening.
Strongdor self adhesive neoprene teardrop seal provided as standard.
Various frame depths and styles are available.

Leaf
44mm door leaf thickness, fitted with an integrated astragal for added security. Comprising of 2 x 1.2mm steel sheets, the leaf skins are mechanically interlocked and internally bonded providing greater stability and protection against de- lamination.
42mm thick ‘Hexatex’ core available.

Threshold
AM5 and 96mm outward thresholds available on request.

Finish
Supplied inclusive of a powder coated finish in a standard colour. Full range of RAL and BS colours available.

Upgrades and Options
Automatic and manual deadlocking.
Single and multi-point locking on inactive and active leaf.
Push pad and push bar options available.
High security Mico hardware.
Side and over panels available.

Standards
Certified to: PAS 24:2016 Enhanced security performance requirement for door-sets and windows in the UK. Door-sets and windows intended to offer a level of security suitable for dwellings and other buildings exposed to comparable risk.

96mm Door Threshold

View File

AM5 Door Threshold

View File
Strongdor Steel Door Single Install Thumbnail

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Strongdor Double Door Install Thumbnail

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Strongdorsecuridorpas24panictechspecthumbnail23

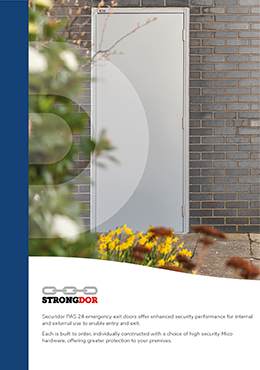

Securidor PAS 24:2016 - Emergency Exits & Personnel Doors

View File
Strongdorlps1175explained22

LPS 1175 Explained

View File
Strongdor Lps1175 V Pas24

LPS 1175 vs PAS 24:2016 Key Differences

View File

Similar Products

PAS 24 - Secured By Design Steel Door

Find out More

Security Rated Steel Door - SR1

Find out More

Security Rated Steel Door - SR2

Find out More

Any questions about this product?

Speak to an expert now

Telephone icon 01524 727000

Door Configurations

Emergency Exit Steel Doors

Emergency Exit configs

Hardware Options

View our popular items of door furniture and security hardware.

Dorma Maglock

Over 150 colours available

View Colour Options

You might be interested in

Steeldor Emergency Exit

Steel Emergency Exit Door

View Door
Yellow pas24 steel door

PAS 24 - Secured By Design Steel Door

View Door

Related Articles

East Grinstead Fc15

Fire Rated Steel Doors Vs Panic Exit Steel Doors

In summary Fire rated doors are used as a barrier to withhold smoke and fire for a specified period of time. Whereas a Fire exit is a steel door fitted with panic exit (push bars) used as a means of escape rather than to keep a fire in.

View Article
Strongdor PAS24 Panic Exit

Strongdor launches new PAS24 panic exit security door!

In May 2022, Strongdor launched their new and improved Securidor steel door range at Fit Show 2022.

View Article
Strongdor Factory Crime Prevention Officers Visit

Strongdor comes together with 13 Crime Prevention Officers

Industry-leading steel door manufacturer Strongdor Ltd, open up their factory to Crime Prevention Police Officers from across the North West to discuss the role steel doors can play in crime reduction and security solutions.

View Article

Frequently Asked Questions

Which security door is the best?

Unfortunately there is no simple answer to this question as all security rated door-sets have protection enhancement. The level of security required for your door-set will be dependent on the location and specification of your installation.

Check out our documents LPS 1175 vs PAS 24:2016 and LPS 1175 Explained to see which security rating may be best for you!

Do Strongdor offer a site measuring or an installation service?

No, Strongdor are a supply only manufacturer and therefore unfortunately don't offer site surveys or installation. However we can recommend local installers in your area from our Doorfit Network, who will be happy to help.

Complete our quotation request form, mention you are looking for installation and we will put you in touch!

Who is responsible for ensuring the sales quotation meets the specification and building regulations, including location and method of installation?

It is the customer’s responsibility to ensure all details within the sales quotation / sales order meet the exact specification and / or original enquiry and are compliant with current building regulations including location and method of installation.

We are here to help and advise only and cannot accept responsibility for discrepancies after the order is confirmed.
