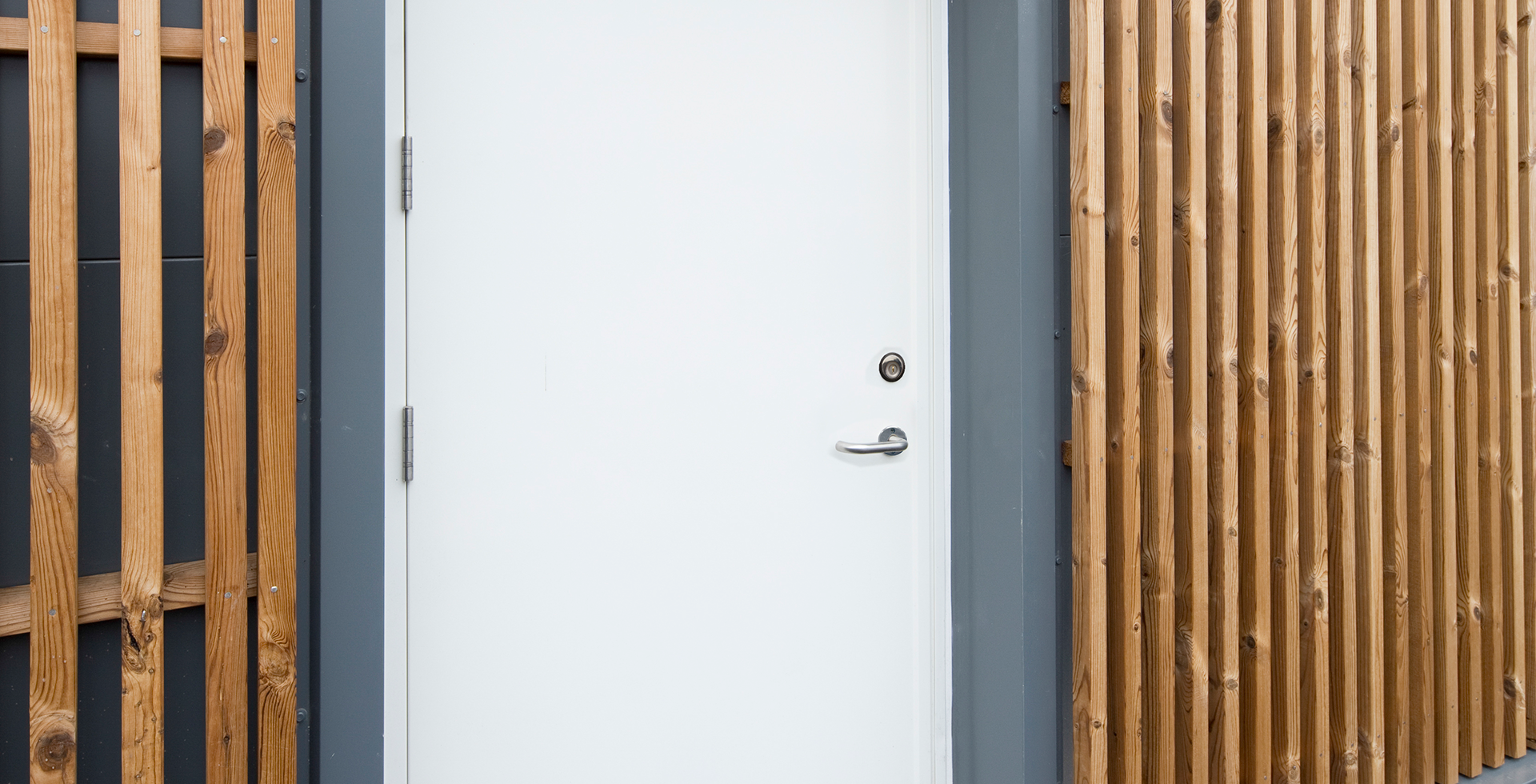

Security Rated Steel Door - SR3

Home / Our Doors / Steel Security Doors / Security Rated Steel Door - SR3
;
Securidor+ Blue Logo

The Securidor+ S3 security door range comprises of single and double security-rated steel door-sets that are specifically designed for use in locations that would benefit from enhanced protection. The typical applications for this range includes retail outlets, cash rooms, warehouses and utility sub stations.

Please note that these door-sets can only be supplied with outward opening leaves.

  • Secure for sure with Strongdor
  • 14 locking options available
  • Louvre Panels in different configurations
Unique Range Features

Easy fit doors
1 year warranty
Steel door experts
Trustpilot rated Excellent

Download Tech Specs
Sbd logo
Made in Britain Colour
LPCBCertificationblack

Product Features

Height Icon
Height

Single - up to 3.06m
Double - up to 3.06m

Width Icon
Width

Single - up to 1.4m
Double - up to 2.51m

Strongdor Icons Acoustic
Acoustic Rating

Est 35 dB

I7
Louvres

305-800mm wide by 305-1025mm high - Not available with panic hardware

NBS Specification

Further information

Features
Drawings
Downloads

Frame
The welded frame is made from reinforced 1.5mm galvanised steel and a 38mm x 100mm single rebated profile. It is reinforced at hinges, lock keeps and fixing points.

Leaf
Manufactured from 1.5mm galvanised attack face steel with 1.5mm inner face, the composite door leaf is 51mm thick with astragal lip to the closing edge. It weighs approximately 80kg per square meter.

Key Features
The range is certified to LPS1175 SR3, and fitted with doubled hinges for additional strength. It also incorporates an anti leverage cover strip to closing edge of door leaf. The door-sets are also Secured by Design approved and are also available with louvres.

Certification
Certified by the Loss Prevention Certification Board to LPS 1175 SR1 Issue 7 Cert/LPCB Ref. 1542a .

Threshold
Leading face fits under the door.

Hardware
Choice of Hooply Cefiro multipoint lock, Mico Tindall AD1 push pad, Mico Tindall AD2 full push pad, Mico Tindall AD3 lever handle, Mico Tindall MD1 push pad, Mico Tindall MD2 full push pad and Mico Tindall MD3 lever handle hardware. Heavy duty tower bolts on the passive leaf. Keys and cylinders can be registered to eliminate the chance of key copying.

Finish
Wide choice of finishes available including powder coated finish from our range of RAL or BS colours.

Optional Extras
Louvre Panels (subject to hardware)
305 - 800mm wide by 305 - 1025m high
(Not available with panic hardware)

Suitable Substrate
Brickwork/concrete blockwork, or structural steelwork.
Minimum Fixing Size - M10

Securidor Typical Leaf and Frame

View File

Standard Threshold

View File
Strongdorsecuridors3techspecthumbnail23

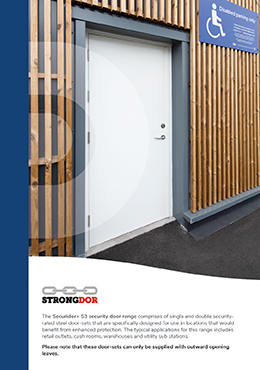

Securidor+ Level 3

View File
Strongdorcolouroptions23

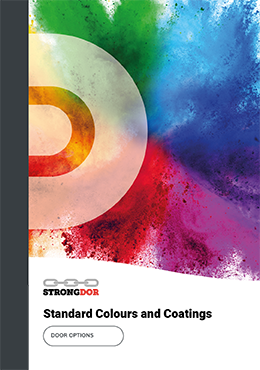

Standard Colours & Coatings

View File
Securidor SR3 steel door fitting instructions

SR3 Fitting and Maintenance Instructions

View File

Similar Products

Security Rated Steel Door - SR4

Find out More

Security Rated Steel Door - SR1

Find out More

Security Rated Steel Door - SR2

Find out More

Any questions about this product?

Speak to an expert now

Telephone icon 01524 727000

Air Circulation

Louvre Panels

Designed to increase airflow in areas that need efficient ventilation, louvred door, side, over panels and walls offer a flexible solution without compromising security or structural integrity.

Airflow panels

Door Configurations

Door Configurations for Steel Doors with security rating 3 & 4

Sr3 Doubles

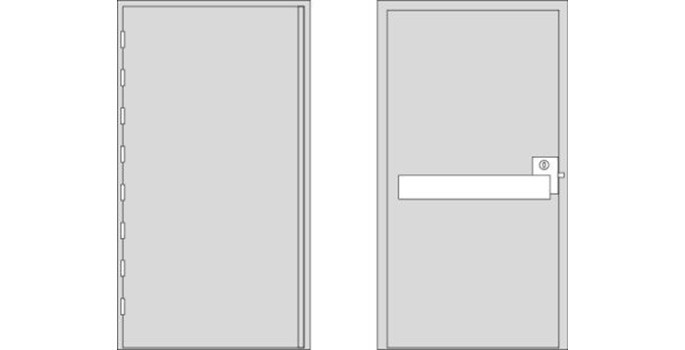

Sr3 Singles
