Steeldor single and double personnel door-sets are designed for internal and external use to enable entry and exit.

Acoustically rated up to 39dB, each is built to order, individually constructed with a choice of hardware, frame, threshold and panel options, including louvre, vision, over and side panels.

Easy to install, and manufactured from corrosion resistant high-tensile steel, each door-set comes complete with powder coating and an appropriate installation kit.

Popular with contractors and specifiers alike, this all-rounder comes with a range of features and options that can be specified to order.

  • Expandable sides as standard
  • Over 150 colours as standard
  • Huge range of hardware options
Unique Range Features

Fast quotes
Easy fit doors
Steel door experts

Download Tech Specs
Iso
Dhfjpg
Made in Britain Colour

Product Features

Height

Single - up to 2.96m
Double - up to 2.96m
Leaf & A Half - up to 2.96m

Width

Single - up to 1.4m
Double - up to 2.7m
Leaf & A Half - up to 2.69m

Leaf thickness

44mm deep leaf skin

Air permeability

EN1026:2000 to class 3 – 600Pa (113kmh) test pressure

Water tightness

EN1027:2000 to 150Pa for outward opening and 100Pa for inward

Resistance to wind load

EN12211:2000 to 1200Pa (Class A3) 98 mph

I10
THERMAL TRANSMITTANCE - U-VALUE

Available with an insulated core as low as 1.5 U-value.

Strongdor Icons Acoustic
Acoustic Rating

Up to 39dB rating.

NBS Specification

Further information

Features
Drawings
Videos
Downloads

Frames
Manufactured from lightweight, high tensile 1.5 mm thick ‘Rustec’ steel.
Adjust 2-Fit side expander system that offers up to 12mm expansion each side to the structural opening.
Self-adhesive P-seal provided as standard.
Various frame depths and styles are available.

Leaf
44mm door leaf thickness, fitted with an integrated astragal for added security. Comprising of 2 x 1.2mm ‘Rustec’ steel sheets, the leaf skins are mechanically interlocked and internally bonded, providing greater stability and protection against de-lamination.

Door Ironmongery
Grade 13 stainless steel, twin bearing template drilled butt hinges with integral high security dog bolts are fitted as standard with CE marking. Other hardware available.

Finish
Supplied inclusive of a powder-coated finish in a standard colour. Full range of RAL and BS colours available.

Options and Upgrades
Manual and Electric Locking.
Vision panels up to 610 x 1524mm.
Louvre panels up to 610 x 1524mm.
Variety of solid and glazed side and over panels.
Up to 39dB acoustic rating.
Up to 1.5 U-value W/M2K.

96mm Door Threshold

View File

Steeldor Single Cross Section

View File

Steeldor Double Cross Section

View File
Strongdor Steel Door Single Install Thumbnail

Single Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor single door-set. Please pay particular attention to the safety instructions.

Strongdor Double Door Install Thumbnail

Double Door Installation

This video contains detailed, step-by-step instructions for the safe installation of a Strongdor Steeldor double door-set. Please pay particular attention to the safety instructions.

Touching Up Paintwork

Touching up Paintwork

A demonstration of how to sue the touch up kit supplied with your steel door-set.

Trimming Expander Panels

Trimming the Expander Panels

Instructions on how to trim the side expander panels, for when the aperture is too tight.

Strongdorsteeldortechspecthumbnail23

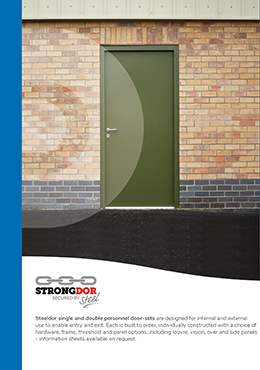

Steeldor - Emergency Exits & Personnel Doors

View File
Strongdorlouveredsideandover

Louvred Side & Top Panel Options

View File
Strongdorvisionpanels23

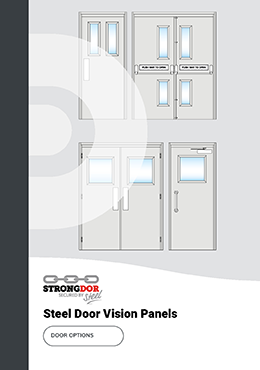

Steel Door Vision Panels

View File
Strongdorcolouroptions23

Standard Colours & Coatings

View File
